Why choose ZUMAX Microscopes?
For tasks requiring precision and detailed clarity, the Zumax Dental Microscopes range excels. Equipped with high-resolution, high-definition lenses and vibrant True-Tone LED illumination, these microscopes deliver exceptionally sharp and clear images. Specifically designed for dental microscopy, they provide evenly lit visuals with natural and accurate color representation.
High quality, German grade precision optics
True-Tone LED illumination
Versatile choice of options and configurations
Medical grade imaging systems
EDI Dental is the sole authorised distributor for ZUMAX in Malaysia

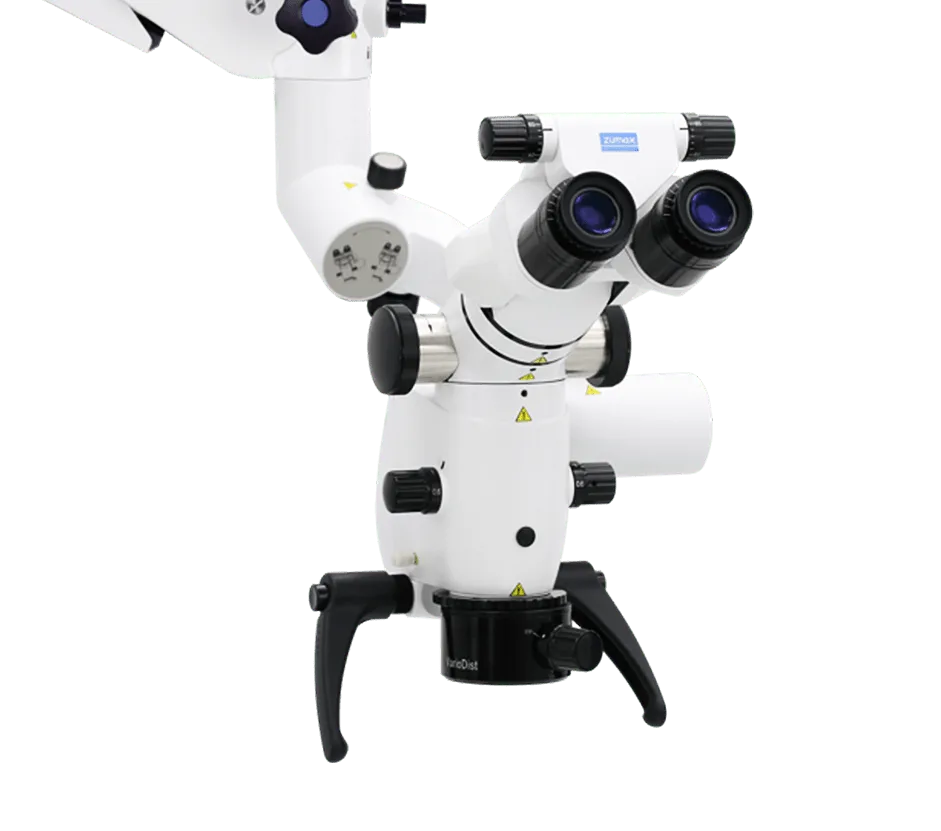

OMS1950 Dental Microscope
Entry level microscope for aiding Dental examinations and procedures. The 5-step change magnification model enables convenient operation at an economic price.
OMS2050 Dental Microscope
The NEW OMS2050 microscope with continuous zoom magnification has a high quality coating and excellent compound achromatic optics lens with a large dept of field and high definition, allowing fine structures to be clearly visible.
OMS2360 Dental Microscope
Available with 6-step magnification supported by 10x, 12.5x, 16x and 20x eyepieces to deliver superb field of view through multi-coated optics reducing optical aberration.

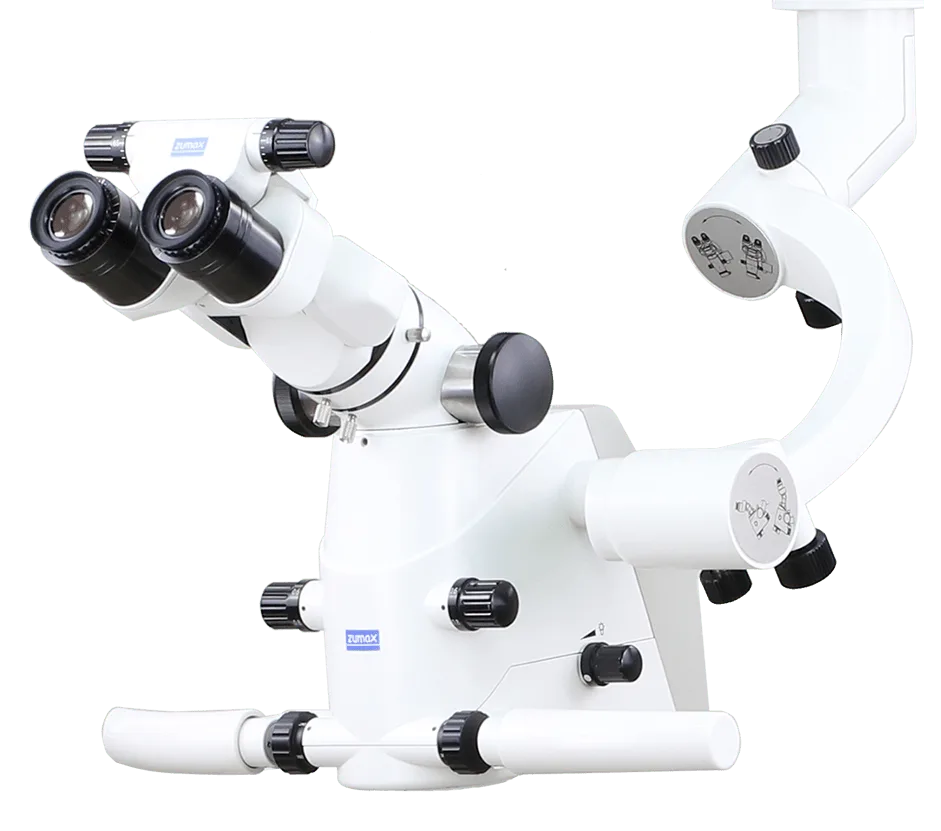

OMS2380 R2 Dental Microscope
More sophisticated option providing the ability to manually adjust magnification as opposed to the pre-set step change, featured on more cost-effective models.

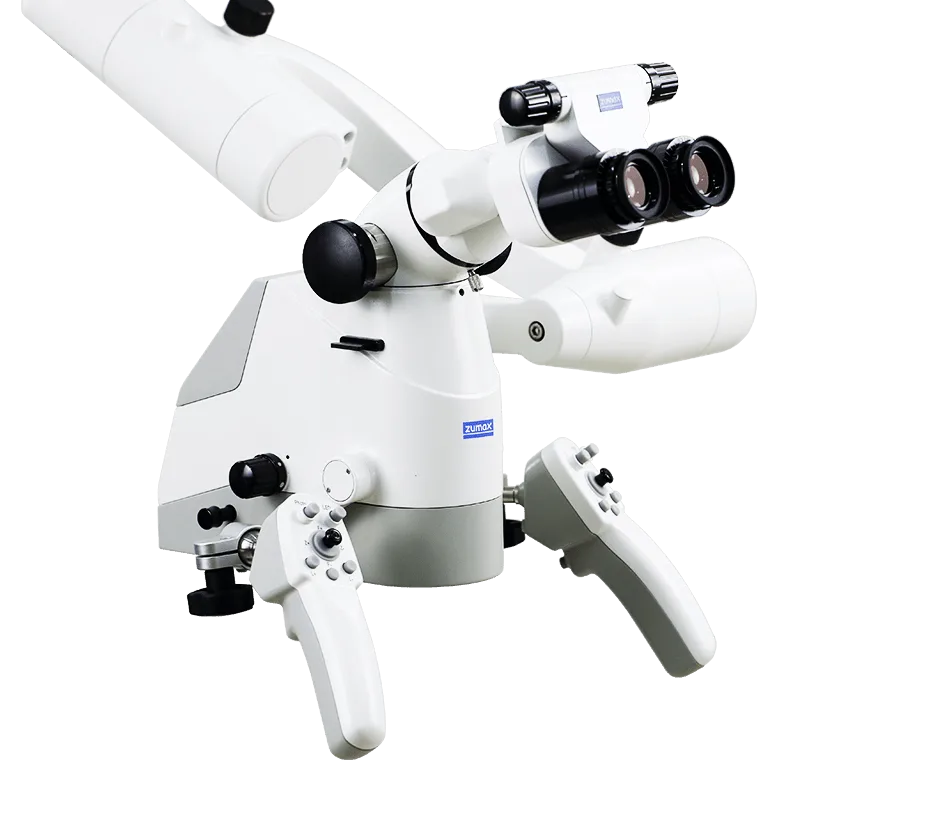

OMS3200 R2 Dental Microscope
The flagship model of the Zumax range offering motorised magnification enhanced with the FreeMov Electromagnetic System, delivering superb manoeuvrability of the optics.
Dental Microscopes Model Comparison
| Model | 1950 | 2350 | 2000 | 2050 | 2360 | 2380 | 3200 |
|---|---|---|---|---|---|---|---|
| Specification | |||||||
| Magnification | 5 Step | 5-6 Step | 5 Step | Continuous | 6 Step | Manual | Motorized |
| High Definition Camera | – | Optional | – | – | Optional | Optional | Optional |
| Objective Lens | F250mm | F250mm | – | – | – | – | – |
| Vario Dist Lens | Optional | Optional | 210 – 460mm | 190 – 480mm | 200 – 450mm | 200 – 450mm | 200 – 450mm |
| Illumination System – Lux @ 250mm Working Distance | 50,000 | 60,000 | 55,000 | 60,000 | 70,000 | 70,000 | 80,000 |
| 0 – 180 Degree Inclinable Binocular | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Eyepiece Magnification – 12.5x | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| PD Adjusting Knob | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Integrated Yellow/ Green Filter | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Handgrip 360 Degree Rotatable | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | |
| Brightness Control Knob | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | |
| 120 Degree Balancing Arm | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | |
| Pendulum Function – Right & Left Inclination | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | |
| Foot Pedal Control | Optional | Optional | ✔ | ✔ | |||
| BriPlus Illumination System | ✔ | ||||||
| Smart Mon LCD Display | ✔ | ||||||
| Free Mov Electromagnetic System | ✔ | ||||||
| Magnetic Stops | ✔ | ||||||
| Mounting | |||||||
| Floor | ✔ | ✔ | Optional | Optional | ✔ | ✔ | ✔ |
| Base | ✔ | ✔ | Optional | Optional | ✔ | ✔ | ✔ |
| Ceiling | ✔ | Optional | Optional | ✔ | ✔ | ✔ | |
| Wall | ✔ | Optional | Optional | ✔ | ✔ | ✔ |
OMS2380 R2 Dental Microscope
An excellent dental microscope that incorporates all the technological advances necessary to provide an incomparable user experience. It’s suitable not only for Endodontic treatment but also for Periodontic, Oral Rehabilitation, Implantodontics and Aesthetic procedures.
Our Project References
Reviews
FAQ for Dental Microscopes in Malaysia
What is the difference between dental loupes and a dental microscope?
Dental loupes offer basic magnification (2x to 6x) and are suitable for general dental procedures. However, ZUMAX dental microscopes provide significantly higher magnification (up to 21x) with superior clarity and precision, making them ideal for detailed work such as endodontics and surgery. ZUMAX microscopes come with integrated LED lighting, ergonomic design, and advanced image recording capabilities, allowing dentists to work more accurately, reduce errors, and improve patient outcomes. For dental professionals seeking greater precision and efficiency, ZUMAX microscopes offer unparalleled advantages.
Can a microscope be used for general dental procedures?
Yes, while microscopes are often used for specialized procedures like root canals or surgeries, they can also enhance routine dental work, including restorations, examinations, and cleanings by providing clearer visualization of the treatment area.
What are the key features to look for in a dental microscope?
Key features to consider include magnification levels, ergonomic design, built-in illumination, ease of adjustment, and image recording capabilities. Some microscopes also offer digital integration for documentation and patient education.
How often do I need to maintain a dental microscope?
ZUMAX dental microscopes are designed for durability and minimal maintenance. Routine cleaning of the lenses and proper care of moving parts should be performed regularly. It’s essential to ensure that the light source is functioning correctly. ZUMAX recommends professional servicing every 2 years to maintain optimal performance, ensuring long-term reliability and precision.
